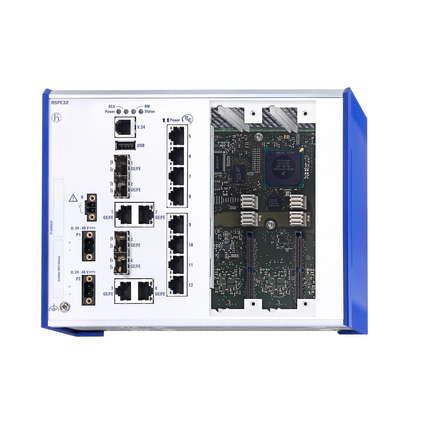

HIRSCHMANN RSPE35-24 04 4O7T99-SCCV999HHDE2AXX.X. MANAGED SWITCH 942 084-999-007

Product Code: 942 084-999-007

The Hirschmann RSP Series Managed Switch is engineered for reliability and performance, offering a robust network solution with enhanced redundancy features such as HSR, PRP, and Fast MRP. This switch supports up to 28 ports, including 24 Fast Ethernet and 4 Gigabit Ethernet connections that accommodate both twisted pair and fiber optic cables through SFP modules. The port configuration comprises 24 x 10/100 Mbit/s FE and 4 x 10/100/1000 Mbit/s GE interfaces. Designed for demanding environments, it operates on a dual power input of 24 to 60 V DC and within a temperature range of 0°C to +60°C. The switch runs on HiOS Layer 2 Standard software, ensuring efficient network management. Compliance with CE, FCC, EU Safety, and Substation approvals underscores its quality assurance. Ideal for engineers seeking reliable network solutions in industrial settings, the Hirschmann RSP Series Switch is a testament to high standards in connectivity and infrastructure resilience.

Technical Specifications

Maximum Temperature (°C) 60
Minimum Temperature (°C) 0
No. of 100Mb Ports 24
No. of 1GB Ports 4
No. of Ethernet Ports 12
No. of Fiber Ports 16
Nominal Power (W) 18
Rated Maximum Operational Voltage DC (V) 60
Rated Minimum Operational Voltage DC (V) 24
Brand HIRSCHMANN
Degree of Protection IP30
Mounting Type DIN Rail
Series RSP
Standards and Approvals IEC 61850-3
