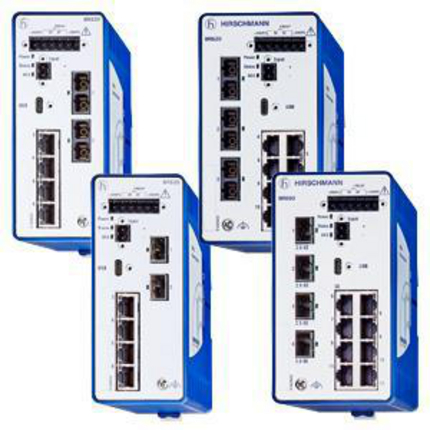

HIRSCHMANN COMPACT MANAGED INDUSTRIAL SWITCH 4X GIG SFP, 8X GIG TX, 12-24V DC, 0-60°C, HIOS L2S 942170009

Product Code: 942 170-009

Hirschmann's network switch is designed for robust performance, featuring 4 Gig SFP ports and 8 Gig TX ports. It operates efficiently within a power range of 12-24 V DC and can withstand temperatures from 0 to 60 degrees Celsius. Equipped with HiOS L2S software, this device ensures reliable Layer 2 switching capabilities.

Technical Specifications

Electromagnetic Capability 10 V/m (80-2000 MHz) 5 V/m (2000-2700 MHz) 3 V/m (5100-6000 MHz)
Electrostatic Discharge (kV) 6 kV Contact Discharge, 8 kV Air Discharge
Maximum Temperature (°C) 60
Minimum Temperature (°C) 0
No. of 1GB Ports 16
No. of Ethernet Ports 8
No. of Fiber Ports 8
Rated Maximum Operational Voltage DC (V) 24
Rated Minimum Operational Voltage DC (V) 12
Relative Humidity 1- 95 %
Resistance to Vibrations 5 Hz ... 8,4 Hz with 3,5 mm amplitude 2 Hz ... 13,2 Hz with 1 mm amplitude 8,4 Hz ... 200 Hz with 1 g 13,2 Hz ... 100 Hz with 0,7 g
Transition Type 2 kV Power Line, 2 kV Data Line
Brand HIRSCHMANN
Cable Length (m) 0 - 100
Degree of Protection IP30
Mounting Type DIN Rail
Series BOBCAT
Surge Voltage (kV) Power Line: 2 kV (Line/Earth) and 1 kV (Line/Line); Data Line: 2 kV
