Product Code: 942 170-999-014

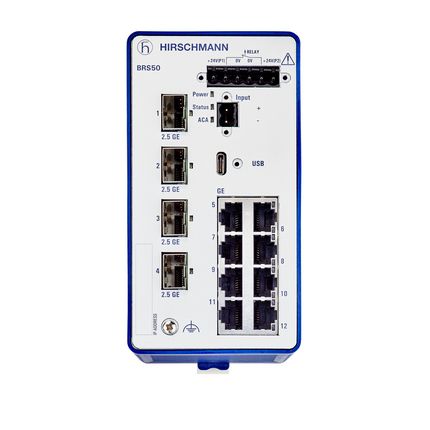

The Hirschmann BOBCAT Series Managed Industrial Switch is a robust networking solution designed to enhance connectivity in demanding industrial environments. This Fast Ethernet switch features 12 ports, including 8 RJ45 ports supporting 10/100BASE-TX and 4 fiber ports with dual-speed capabilities of 100/1000Mbit/s. It boasts four SFP slots for Gigabit uplink, providing high-speed data transmission and network flexibility. Engineered for reliability, it operates within a wide temperature range of -40 to +70°C and comes with an IP30-rated enclosure for protection against dust and foreign objects. The switch can be powered by dual voltage inputs of 12 VDC or 24 VDC while maintaining low power consumption at just 9W. Its DIN Rail mounting option ensures easy integration into control panels or equipment racks, making it an ideal choice for various industrial applications within the Network Solutions category.

Maximum Temperature (°C)	70
Minimum Temperature (°C)	-40
No. of 100Mb Ports	8
No. of 1GB Ports	4
No. of Ethernet Ports	8
No. of Fiber Ports	4
Nominal Power (W)	9
Rated Maximum Operational Voltage DC (V)	24
Rated Minimum Operational Voltage DC (V)	12
Brand	HIRSCHMANN
Degree of Protection	IP30
Mounting Type	DIN Rail
No. of Ports	8 x 10/100BASE TX RJ45, 4 x 100/1000 Fiber
Operational Temperature Range (°C)	0 to +60
Reference No.	BRS30-0804OOOO-ETCZ99HHSEA
Series	BOBCAT
Standards and Approvals	CE, FCC, EN61131
