Electromagnetic Capability	10 V/m (80-2000 MHz) 5 V/m (2000-2700 MHz) 3 V/m (5100-6000 MHz)
Electrostatic Discharge (kV)	6 kV Contact Discharge, 8 kV Air Discharge
Operating Voltage	2 x 12 - 24V DC
Port Quantity and Type	16 x 10/100BASE-TX / RJ45
Power Output in BTU (IT)/h	34
Protective Paint on PCB	Yes (conformal coating)
Relative Humidity	1- 95 %
Resistance to Vibrations	5 Hz ... 8,4 Hz with 3,5 mm amplitude 2 Hz ... 13,2 Hz with 1 mm amplitude 8,4 Hz ... 200 Hz with 1 g 13,2 Hz ... 100 Hz with 0,7 g
Transition Type	2 kV Power Line, 2 kV Data Line
Brand	HIRSCHMANN
Approvals	CE, FCC, EN61131, EN62368-1, Cul61010
Cable Length (m)	0 - 100
Degree of Protection	IP30
Dimensions (mm)	109W x 138H x 115D
Housing Material	PC-ABS
Mounting Type	DIN Rail
Operational Temperature Range (°C)	0 to +60
Power Consumption (W)	10
Storage Temperature Range (°C)	-40 to +70
Surge Voltage (kV)	Power Line: 2 kV (Line/Earth) and 1 kV (Line/Line); Data Line: 2 kV
Weight (g)	880

Ethernet Switches

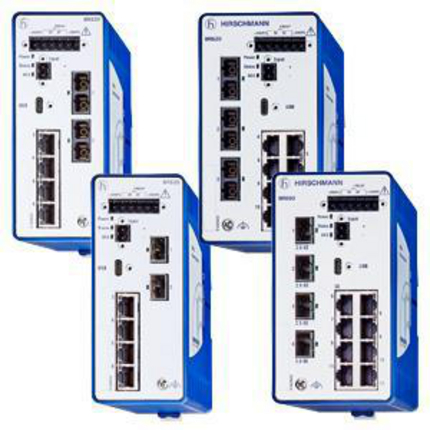

HIRSCHMANN MANAGED INDUSTRIAL SWITCH FOR DIN RAIL 16X FAST ETHERNET TX, 12-24 V DC, 0 °C TO +60 °C, HIOS L2S 942170053
