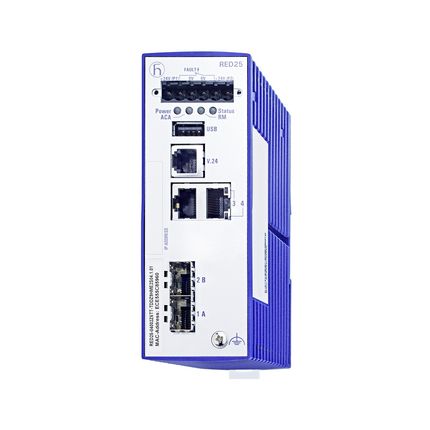

HIRSCHMANN ETHERNET SWITCH MANAGED 942 137-999-001

Product Code: 942 137-999-001

Optimize your industrial network performance with the Hirschmann RED25 Series switch. This robust managed switch features 4 ports: two 10/100 Mbit/s RJ45 connections and two FE-SFP slots for fiber optic modules, ensuring versatile connectivity options. Engineered for reliability in demanding environments, it operates within a wide voltage range of 9.6-60 VDC and maintains efficiency with a power consumption of just 9 W. The RED25 thrives in temperatures ranging from 0 to +60°C and is equipped with advanced redundancy protocols including PRP, Fast MRP, HSR, and DLR to minimize downtime. With HiOS Layer 2 Standard compliance and an IP20 rating, this DIN rail-mountable switch is designed for seamless integration into any industrial setting. Trust in the quality that Hirschmann's Network Solutions offer to keep your systems connected and protected.

Technical Specifications

Maximum Temperature (°C) 60
Minimum Temperature (°C) 0
No. of 100Mb Ports 4
No. of Ethernet Ports 2
No. of Fiber Ports 2
Nominal Power (W) 9
Port Quantity and Type 2 x 10/100MBit/s Twisted Pair RJ45, 2 Fast Ethernet SFP
Rated Maximum Operational Voltage DC (V) 60
Rated Minimum Operational Voltage DC (V) 9.6
Brand HIRSCHMANN
Degree of Protection IP20
Dimensions (mm) 131H x 47W x 111D
Mounting Type DIN Rail
Operational Temperature Range (°C) 0 to +60
Power Consumption (W) 9
Rated Operational Voltage DC (V) 12 - 48
Rated Voltage AC (V) 24
Series RED25
Standards and Approvals CE, FCC, EN61131
Switch Type Switch - Managed
