Products

Ethernet Switches

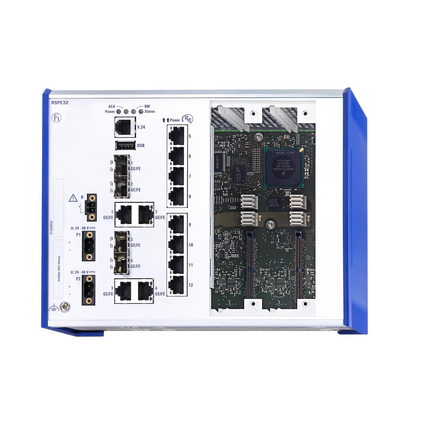

HIRSCHMANN MANAGED FAST ETHERNET DIN RAIL SWITCH 942 084-999-016

Product Code: 942 084-999-016

The Modular Managed Industrial Switch DIN Rail is a fanless design with 16 fiber ports. It consists of a basic unit with 4 GE/FE ports and an additional 12 FE ports with a media module. This switch is designed for industrial use and can be easily mounted on a DIN rail.

Technical Specifications

No. of Ethernet Ports 24 x 10/100 Mbit/s (Fast), 04 x 10/100/1000 Mbit/s (Gigabit)
Port Configuration 04 x Combo Ports (10/100/1000 Mbit/s)
Power Supply Connection 02 x 24 to 60 V DC
Uplink Ports 4 x Combo Ports (10/100/1000) Mbit/s
Brand HIRSCHMANN
Configuration Fast MRP (Hardware), Hirschmann Standard Configuration (Software)
Degree of Protection IP30
Dimensions (mm) 164 H x 209 (217) W x 120 D
Mounting Type DIN Rail
Operational Temperature Range (°C) -40 ° to +70 °
Power Consumption (W) 36
Series RSPE
Standards and Approvals Z9 + IEC 61850, IEEE 1613, cUL61010, EN50121 (Substation, UL, Train)
