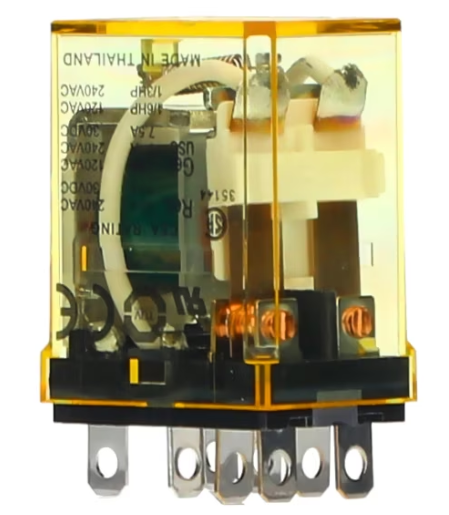

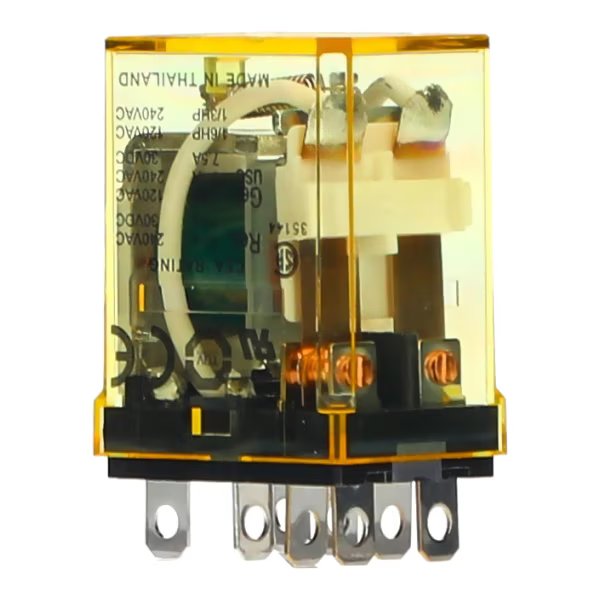

IDEC RELAY DPDT 10A W/LED RH2B-ULAC110-120

Product Code: RH2B-ULAC110-120

The IDEC RH2B-ULAC110-120 is a DPDT relay designed for industrial applications, compatible with 110-120V AC. It features a bright LED indicator for easy status monitoring and a robust 10A contact rating for dependable performance. This relay is RoHS compliant, ensuring adherence to environmental standards and durability in demanding industrial settings.

Technical Specifications

Contact Resistance (mO) 50
Operating Time 20ms (Measured at the rated voltage (at 20°C))
Relay Options Indicator Light
Resistance to Shock (m/s²) 1000
Terminal Shape Blade Terminal
Brand IDEC
Ambient Temperature Range (°C) -25 to 70
Coil Voltage AC (V) 110 - 120
Coil Voltage DC (V) 110 - 120
Contact Configuration DPDT
Contact Material Silver Cadmium Oxide
Contacts DPDT
Dimensions (mm) 21W x 42H x 27.5D
Insulation Resistance (MO) 100
Minimum Electrical Life 500,000 Operations
Minimum Mechanical Life 50,000,000 Operations
No. of Poles 2
Operating Humidity 45 to 85% RH (No Condensation)
Power Consumption (VA) AC: 1.4VA (50Hz), 1.2VA (60Hz)
Power Consumption (W) DC: 0.9W
Rated Current (A) 10
Resistance to Vibrations 10 to 55Hz
Terminal Type Blade
Weight (g) 37
