Product Code: UB40.241

The 1-Battery-Concept ensures the longest battery life by charging and monitoring each 12V battery separately. Matching batteries is not necessary. The output is decoupled from the input, separating load circuits into buffered and non-buffered sections. It allows forVRLA battery sizes between 12Ah and 200Ah, with a "Battery Size" selector for different battery sizes. There is an additional 50% extra output power available for up to 5 seconds. The battery management system is superior, providing comprehensive diagnostic and monitoring functions. It includes a "Replace Battery" signal and a "Battery-Low Prewarning" signal. There is also a selectable buffer time limiter and temperature controlled battery charging.

Brand	PULS
Battery Size	12 Ah - 200 Ah
Conformal Coating	No
Connection Type	Screw terminals
Country of Origin	Czech Republic
Customs Tariff Number	85044083
Degree of Protection	IP20
Derating	24 W/°C
Derating Temperature (°C)	+50 to +70
Dimensions (mm)	46W x 124H x 127D
E Classification	E-CS04
Efficiency	%
Family	DIMENSION
Input Voltage Range DC (V)	24
Internal Current Consumption (A)	3.2 / 6.2 (Including Charging Current)
Minimum Input Voltage DC (V)	24
Mounting Type	DIN Rail
Nominal Output Current 'a' (A)	40
Operational Temperature Range (°C)	-25 to 70
Output Power (W)	960
Output Voltage (V)	24
Range	DIMENSION
Rated Current (A)	40
Series	U series
Special Application	Hazardous location
Standards and Approvals	ATEX EN 60079, Class I Div. 2 Canada - UL, Class I Div. 2 USA - UL, EU Declaration of Conformity, IECEx IEC 60079, IEC 61010-2-201 CB Scheme, UL 61010-2-201 Canada, UL 61010-2-201 USA, UK Declaration of Conformity
Storage Element	External lead acid battery
Temperature Tracking Of The End-of-charge Voltage	Automatically with temperature sensor
Use In Crosslinking	Yes
Warranty Period (Months)	36
Weight (g)	530

Uninterruptible Power Supplies (UPS)

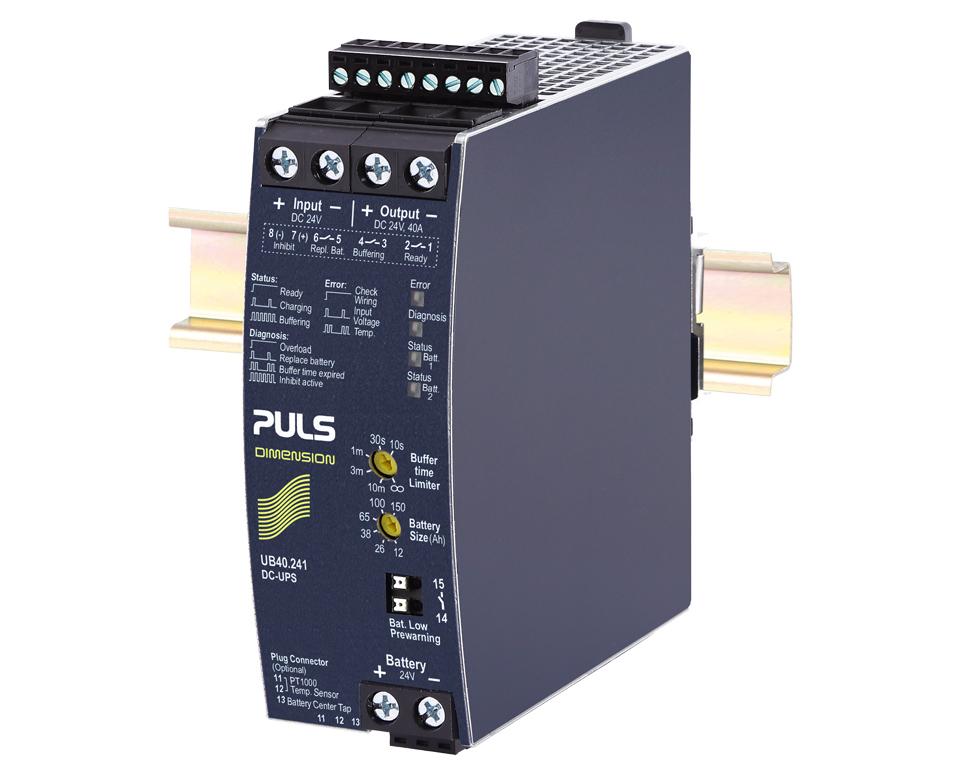

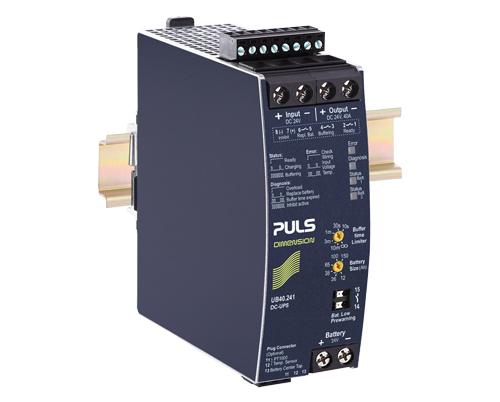

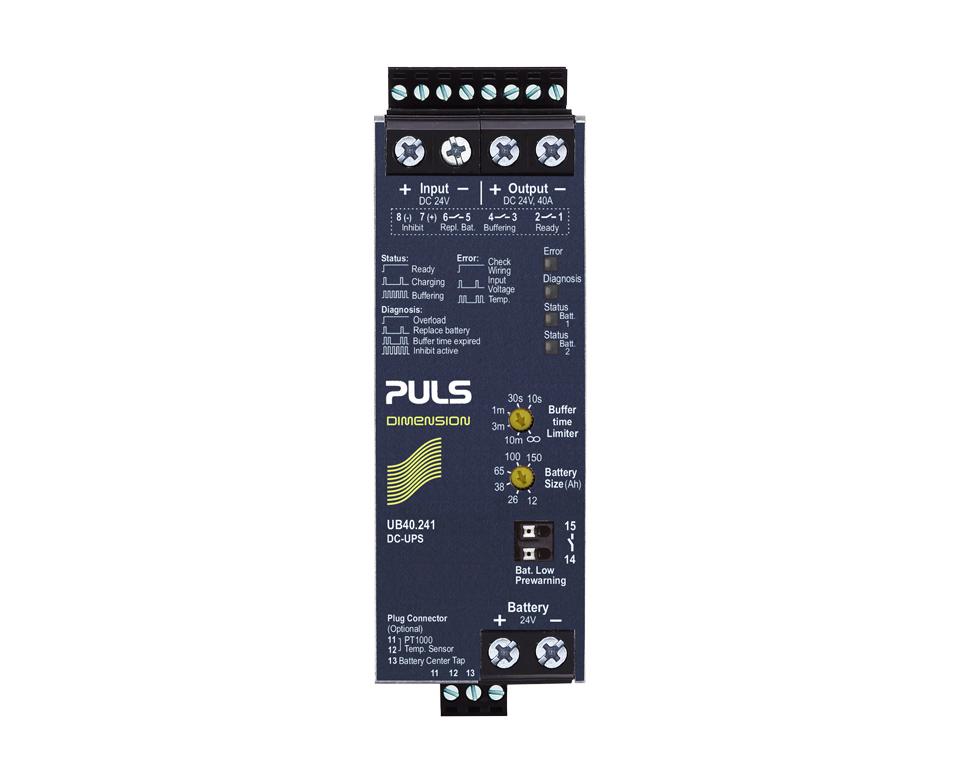

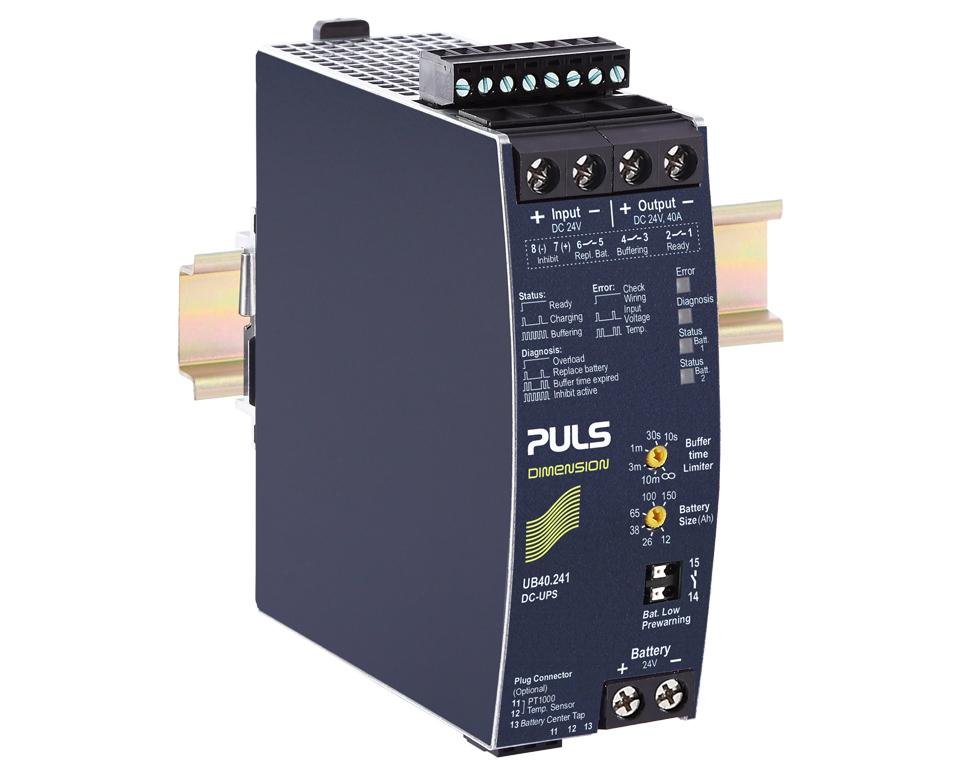

PULS DC-UPS CONTROL UNIT 24VDC 40A UB40.241

Product Code: UB40.241
