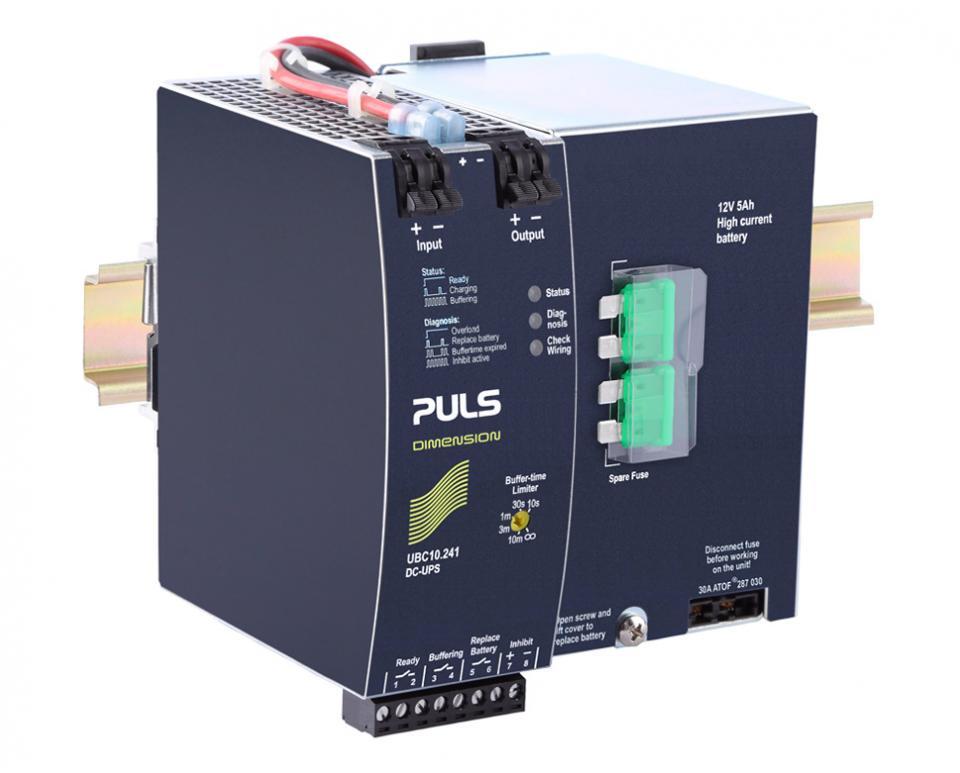

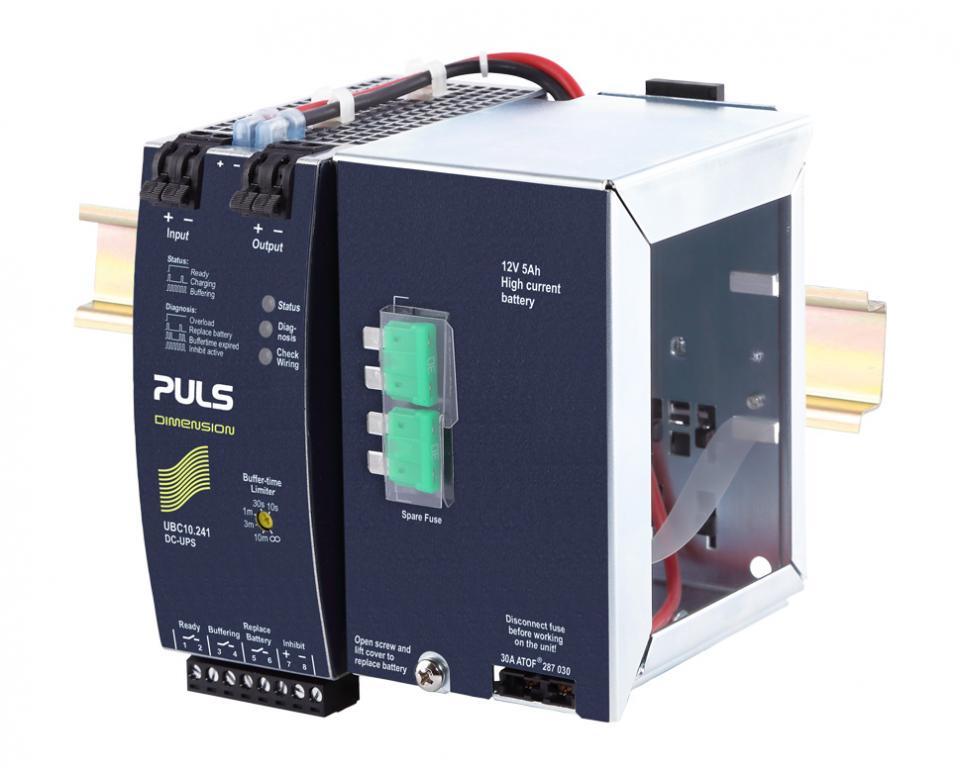

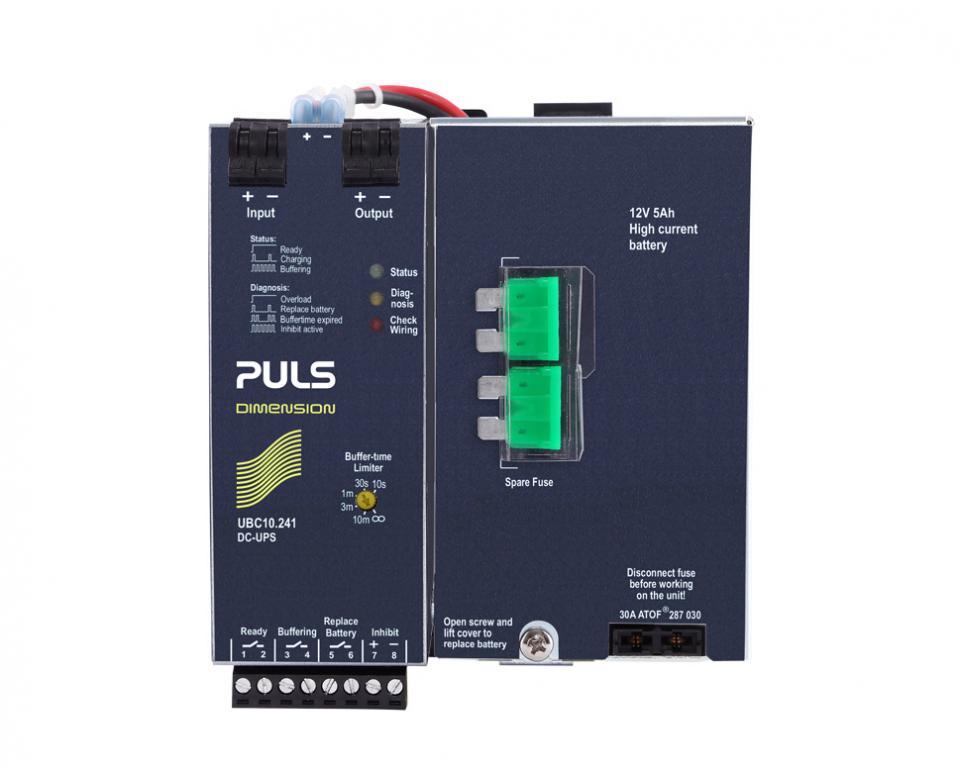

Product Code: UBC10.241-N1

Compact and easy to install, this product offers the longest buffer time in its class. With easy battery access and stable outputVoltage in buffer mode, it ensures superior battery management for the longest battery life. The temperature compensated battery charging feature further enhances its performance. Additionally, it comes with comprehensive diagnostics and monitoring functions, including a replace battery signal. It is electronically overload and short circuit protected, providing 50% power reserves. The selectable buffer time limiter adds to itsVersatility.

Brand	PULS
Battery Size	12 V, 5Ah
Conformal Coating	No
Connection Type	Spring clamps
Country of Origin	China / Czech Republic
Customs Tariff Number	85044083
Degree of Protection	IP20
Dimensions (mm)	123W x 124H x 119D
E Classification	E-CS04
Efficiency	%
Family	DIMENSION
Input Voltage Range DC (V)	24
Internal Current Consumption (A)	1.3 (Including Charging Current)
Minimum Input Voltage DC (V)	24
Mounting Type	DIN Rail
Nominal Output Current 'a' (A)	15
Nominal Output Current 'b' (A)	10
Operational Temperature Range (°C)	0 to 40
Output Voltage (V)	24
Range	DIMENSION
Rated Current (A)	10
Series	U series
Special Application	Hazardous location, Marine
Standards and Approvals	ATEX EN 60079, Class I Div. 2 Canada - UL, Class I Div. 2 USA - UL, EU Declaration of Conformity, IECEx IEC 60079, IEC 60950 CB Scheme, Marine ABS, Marine DNV, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Storage Element	Built-in lead acid battery
Temperature Tracking Of The End-of-charge Voltage	Automatically with temperature sensor
Use In Crosslinking	Yes
Warranty Period (Months)	36
Weight (g)	850
