PULS BUFFER MODULE 24VDC 40A UF40.241
Zoom
Zoom
Zoom
Zoom
Zoom

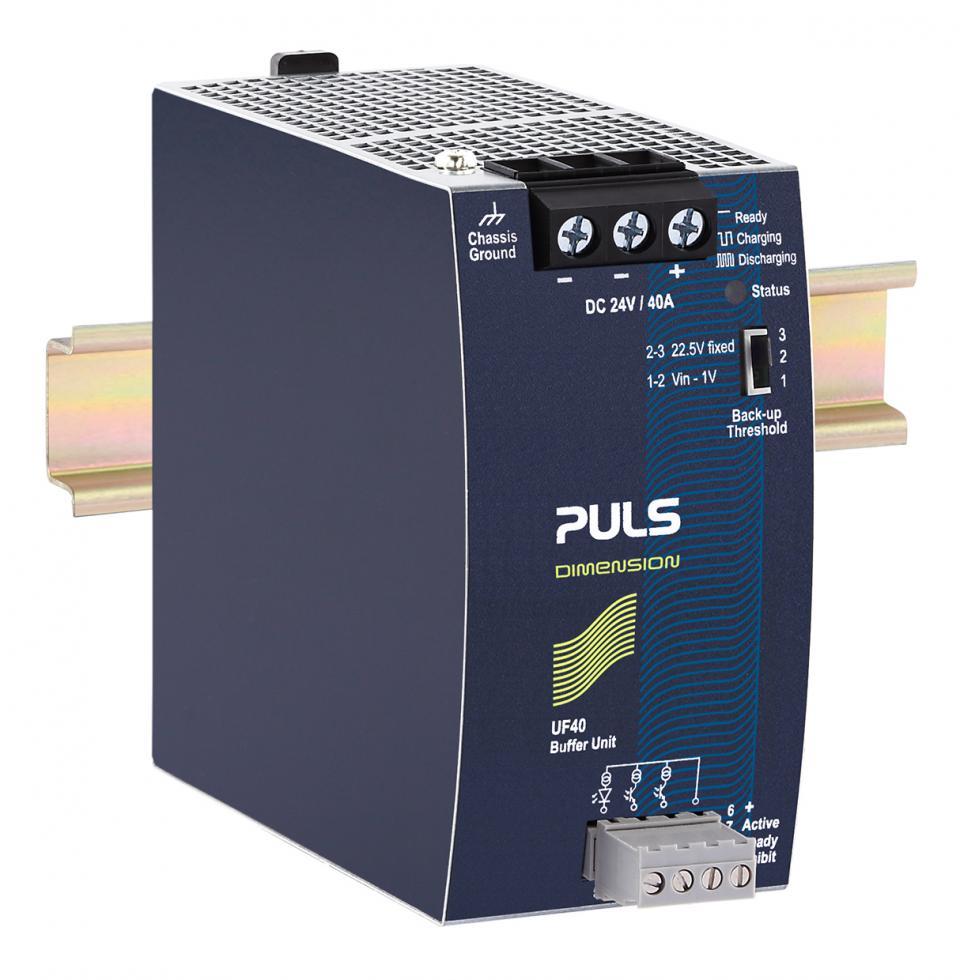

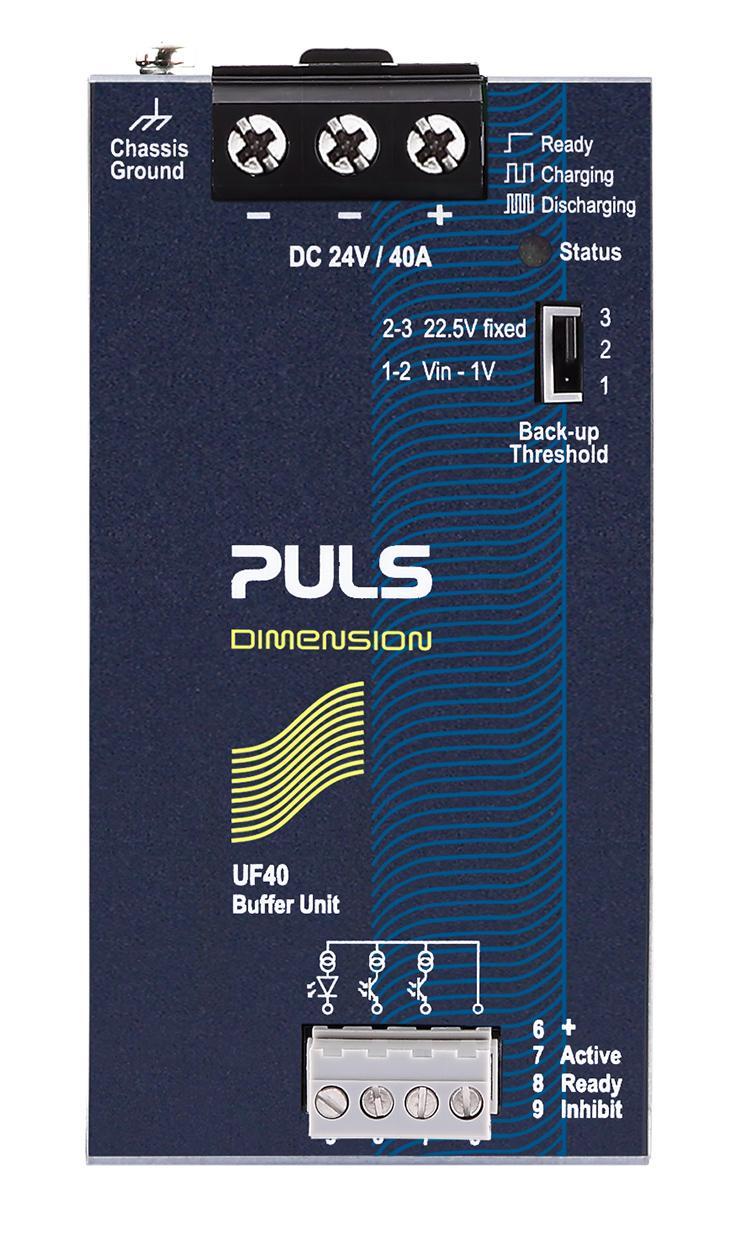

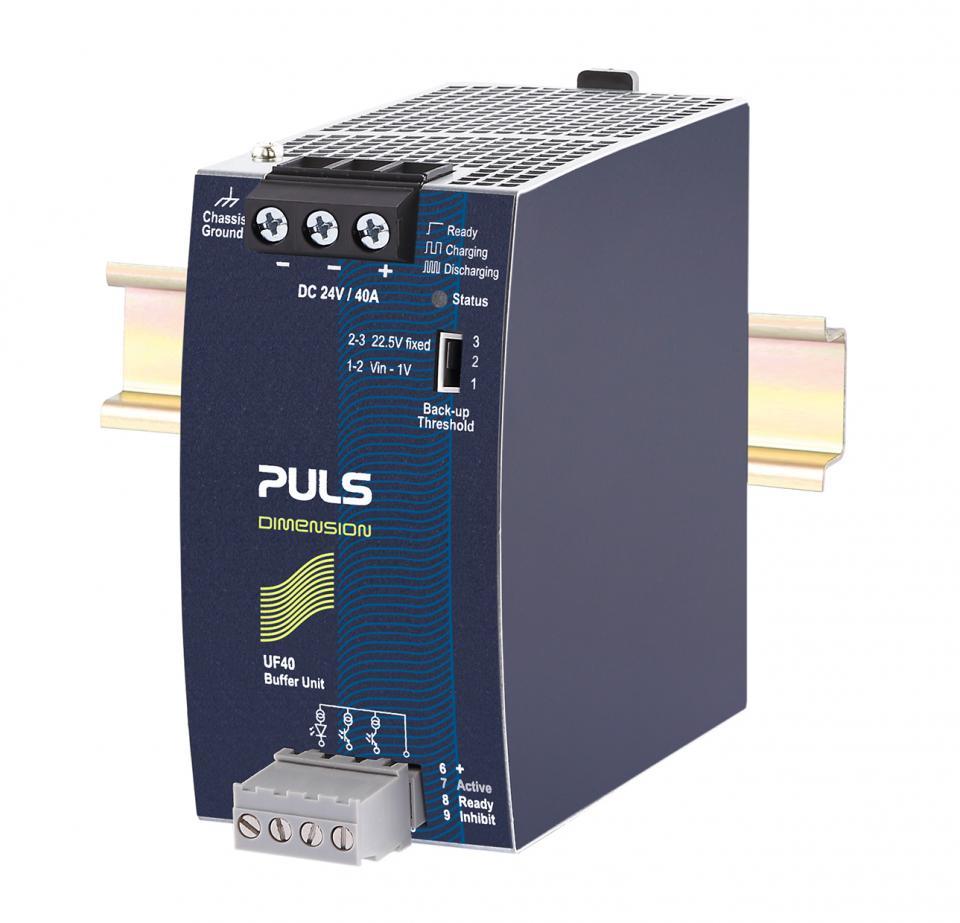

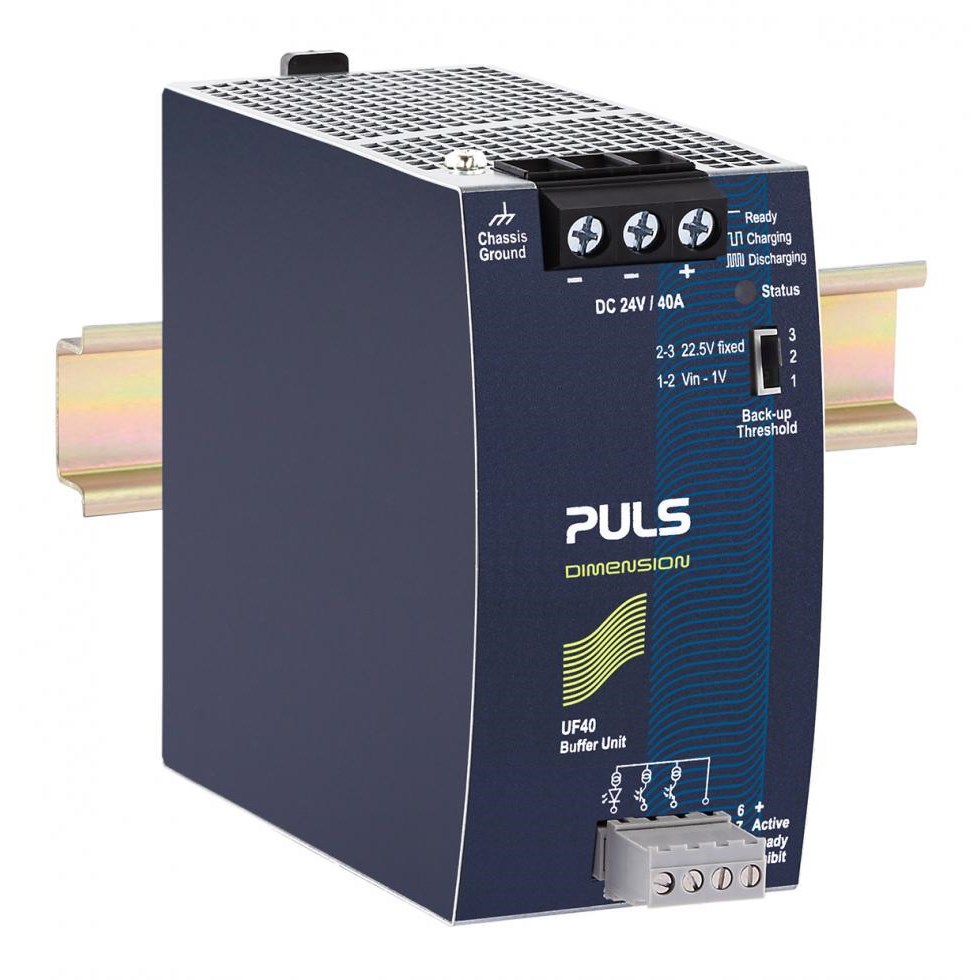

PULS BUFFER MODULE 24VDC 40A UF40.241
Product Code: UF40.241
Buffer 24V loads using electrolytic capacitors instead of lead acid batteries. Provides a minimum hold-up time of 0.16s at 40A, with longer hold-up times at lower loads. Clear status indication through LED and signaling terminals. Features quick-connect spring-clamp terminals for easy installation.
Technical Specifications
Brand
PULS
Conformal Coating
No
Connection Type
Screw terminals
Country of Origin
China / Czech Republic
Customs Tariff Number
85044083
Degree of Protection
IP20
Dimensions (mm)
64W x 124H x 142D
E Classification
E-CS04
Efficiency
%
Family
DIMENSION
Input Voltage Range DC (V)
24
Minimum Input Voltage DC (V)
24
Mounting Type
DIN Rail
Nominal Output Current 'b' (A)
40
Operational Temperature Range (°C)
-25 to 70
Output Voltage (V)
24
Range
DIMENSION
Rated Current (A)
40
Series
U series
Standards and Approvals
EU Declaration of Conformity, IEC 60950 CB Scheme, IEC 61010-2-201 CB Scheme, Korea Certification, UL 60950-1 Canada, UL 60950-1 USA, UL 61010-2-201 Canada, UL 61010-2-201 USA, UK Declaration of Conformity
Storage Element
Electrolytic capacitors
Use In Crosslinking
Yes
Warranty Period (Months)
36
Weight (g)
1040
Documents
Supplier Datasheet
Product catalogue (Flipbook)
