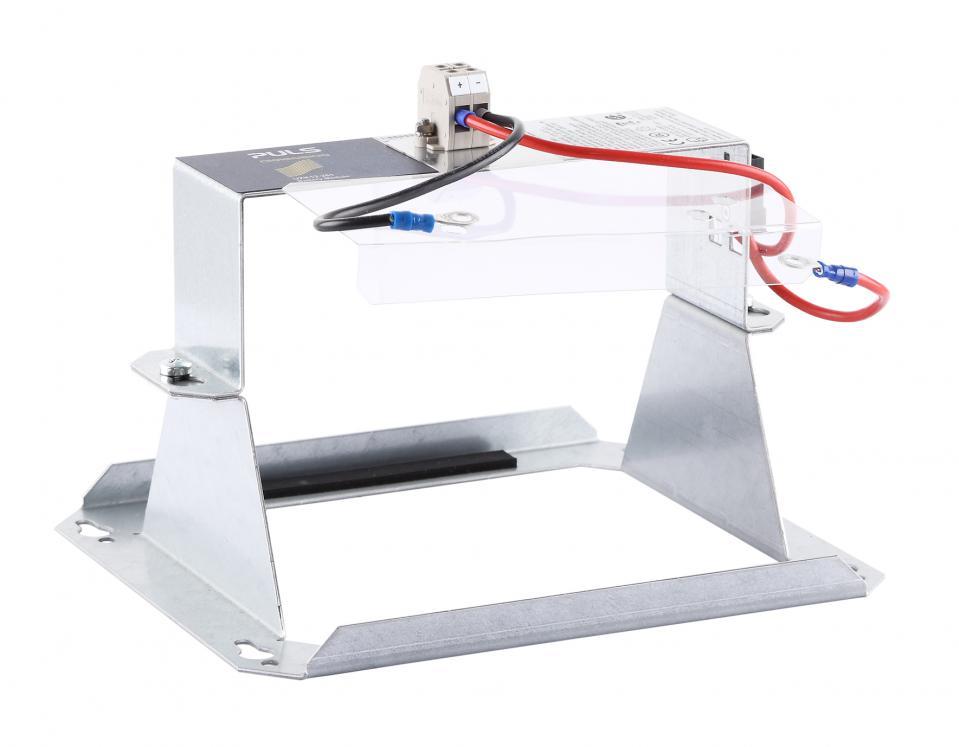

PULS BATTERY MODULE WITHOUT BATTERY 12V UZO12.26

Product Code: UZO12.26

The battery in this product has a long life of 10 to 12 years, as stated by EUROBAT. It has a small mounting footprint and provides easy access to the terminals and fuse. The product also includes a heavy-duty fuse holder and a spare fuse. There is a 3-year warranty for the product, except for the batteries which are considered service parts.

Technical Specifications

Brand PULS
Conformal Coating No
Country of Origin Czech Republic
Customs Tariff Number 85044083
Degree of Protection IP20
Dimensions (mm) 214W x 179H x 158D
E Classification E-CS05
Efficiency %
Family DIMENSION
Mounting Type DIN Rail
Output Voltage (V) 12
Range DIMENSION
Series U series
Special Application Hazardous location, Marine
Standards and Approvals ATEX EN 60079, Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IECEx IEC 60079, Marine ABS, Marine DNV
Use In Crosslinking Yes
Warranty Period (Months) 36
Weight (g) 620

Documents
