Pilot & Signalling Devices

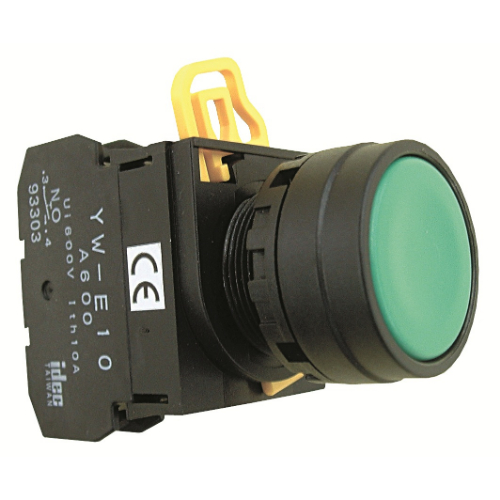

IDEC YW1B-M1E10G NON-ILLUMINATED PUSHBUTTON GREEN FLUSH MOMENTARY 1NO

Product Code: YW1B-M1E10G

The IDEC YW1B-M1E10G is a non-illuminated, green flush momentary pushbutton designed for straightforward operation. It features a single normally open contact and is suitable for 22mm mounting. The pushbutton ensures safety with an IP20 rating, offering finger-safe terminal connections. This device is ideal for applications requiring a reliable and safe momentary switching solution.

Technical Specifications

Brand IDEC
Bezel Type Plastic
Colour Green
Contact Material Silver
Contacts 1NO
Conventional Free-Air Thermal Current - Ith (A) Contact Rating - 10
Degree of Protection IP65 (Front), IP20 (Terminals)
Illumination Non-Illuminated
Insulation Resistance (MO) 100
Mode of Operation Momentary
Mounting Hole Diameter (mm) 22
Operational Temperature Range (°C) -20 to +55
Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) Contact Rating - 600
Series YW
Terminal Type Screw (M3.5)
