Product Code: UPS502R2RT0B035

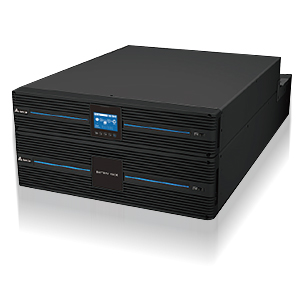

The Delta Amplon RT 5000VA/5000W 4RU is a versatile UPS designed for both rack and tower configurations, ensuring a reliable power supply for critical systems. This standard runtime model comes equipped with a robust set of sixteen 12V/7AH batteries and an external bypass switch for maintenance without power interruption. It features a single MINI slot for expandability and requires the RAIL KIT IS 3915100011 for installation. With dimensions of 440W x 665D x 176H (mm) and weighing 54kg, it's engineered to fit seamlessly into your existing setup.

Brand	DELTA
Battery Charge Current (A)	1
Battery Voltage DC (V)	192
Communication Interface	MINI Slot x 1, Parallel Port x 2, USB Port x 1, RS232 Port x 1, RS485 Port x 1, REPO/roo x 1, Dry Contact x 4
Connection Type	Input Terminal x 1
Dimensions (mm)	176 H x 440 W x 665 D
Humidity	5 ~ 95% (non-condensing)
Input Frequency Range (Hz)	40-70
Noise Level (dBA)	48
Operational Temperature Range (°C)	0 - 550
Output Frequency Range (Hz)	50/60 ± 0.05
Output Receptacle	C13 x 6, C19 x 2, Terminal x 1, Load bank: C19 x 1
Output Voltage AC (V)	200/208/220/230/240
Power Rating (W)	5kVA/5kW
Series	RT
Voltage Range AC (V)	100-280
Weight (kg)	54

Uninterruptible Power Supplies (UPS)

DELTA AMPLON RT 5000VA/5000W UPS Includes Battery, Rack/Tower UPS502R2RT0B035

Product Code: UPS502R2RT0B035

Technical Specifications
