Brand	SCHMERSAL
Degree of Protection	IP66 / IP67
EAN	4030660000000
eCl@ss Number, Version 11.0	27-27-26-02
eCl@ss Number, Version 9.0	27-27-24-02
Enclosure Material	Metal, zinc die-cast
ETIM 6.0	EC002544
ETIM 7.0	EC001449
Gross Weight (g)	273.5
Maximum Ambient Temperature (°C)	80
Minimum Ambient Temperature (°C)	-25
Minimum Mechanical Life	10000000 Operations
Net Weight (g)	308
Sensor Height (mm)	220
Sensor Length (mm)	50
Standards	EN ISO 13849-1
Terminal Type	Cable
Utilisation Category AC-15	240 VAC
Utilisation Category DC-13	24 VDC

Presence Sensing Safety Devices

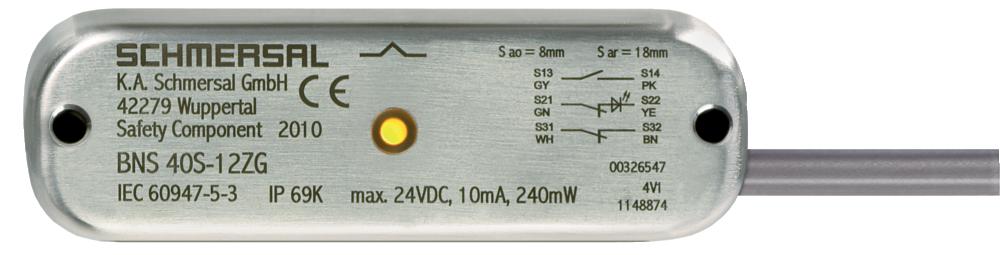

SCHMERSAL MAGNETIC SAFETY SENSOR WITH STAINLESS STEEL LED 103000648
