Product Code: 101184377

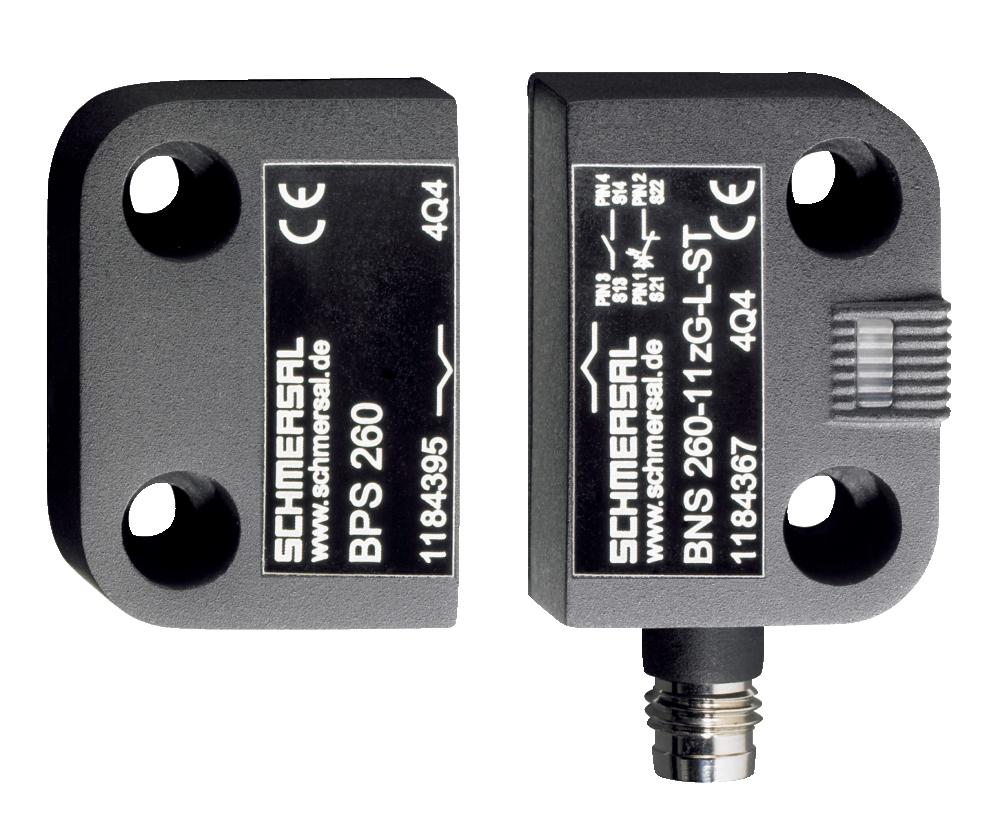

The Schmersal BNS260 series safety sensor is a robust machine safety solution designed with a thermoplastic enclosure to ensure durability. This sensor features a magnetic actuating element and is suitable for applications requiring two openers and two safety contacts. Engineered for left-hinged doors, it comes equipped with an M8 terminal connector for easy installation. The BNS260 operates at a switching voltage of 75 VDC, with a current of 0.4 A and a switching capacity of 10 VA, making it an efficient choice for various industrial safety applications.

Brand	SCHMERSAL
Actuator Type	Roller plunger R200
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
eCl@ss Number, Version 11.0	27-27-27-04
eCl@ss Number, Version 9.0	27-27-26-06
Enclosure Material	Plastic, glass-fibre-reinforced
ETIM 6.0	EC002549
ETIM 7.0	EC001831
Gross Weight (g)	315
Maximum Actuating Speed (m/s)	0.3
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	2.5
Maximum Fuse Rating	10 A gG D-fuse slow blow
Maximum Temperature (°C)	70
Minimum Ambient Temperature (°C)	0
Minimum Cable Cross Section (mm²)	0.25
Minimum Mechanical Life	20000000 Operations
Minimum Temperature (°C)	-25
Net Weight (g)	20
No. of Safety Contacts	4
Nominal Output Current (A)	0.4
Nominal Power (W)	10
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	400
Rated Maximum Operational Voltage DC (V)	75
Rated Short-circuit Current (A)	100
Sensor Height (mm)	90
Sensor Length (mm)	33
Series	BNS260
Standards	EN IEC 60947-5-1 / EN ISO 13849-1 / BG-GS-ET-15
Switching Element	Normally open contact (NO)
Switching Principle	Slow action
Terminal Type	Pre-wired cable
Utilisation Category	DC-13 \| AC-15

Presence Sensing Safety Devices

SCHMERSAL BNS260-02Z-ST-L SAFETY SENSOR 101184377

Product Code: 101184377

Technical Specifications

Documents
