Brand	SCHMERSAL
Actuator Type	Magnet
Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	Low
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
eCl@ss Number, Version 11.0	27-27-26-01
eCl@ss Number, Version 9.0	27-27-26-01
Enclosure Coating Material	Painted
Enclosure Material	Plastic, glass-fibre-reinforced
ETIM 6.0	EC000030
ETIM 7.0	EC000223
Gross Weight (g)	25
Height (mm)	100
Housing Construction Form	Norm construction design
Installation Conditions	Not flush
Maximum Actuating Speed (m/s)	1
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	1.5
Maximum Fuse Rating	6 A gG D-fuse
Minimum Actuating Speed (mm/min)	10
Minimum Ambient Temperature (°C)	-25
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	100000 Operations
Minimum Positive Break Force (N)	17
Mounting Type	2 x M5, Cylinder head screw
Net Weight (g)	45
No. of Auxiliary Contacts	1
No. of Safety Contacts	1
Overvoltage Category	3
Pollution Degree	3
Protection Class of Operating Resource	3
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	300
Rated Short-circuit Current (A)	1000
Resistance to Shock (g/ms)	30 / 11
Sensor Height (mm)	89.5
Sensor Length (mm)	49
Standards	EN IEC 60947-5-1 / EN IEC 60947-1
Storage Temperature (°C)	-25 to 70
Switching Element	NC contact, NO contact
Switching Principle	Slow action
Terminal Type	Connector
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	0.5 A
Width (mm)	112.5
Wire Cross-Section	0.25 mm
Working Principle	Mechanical

Presence Sensing Safety Devices

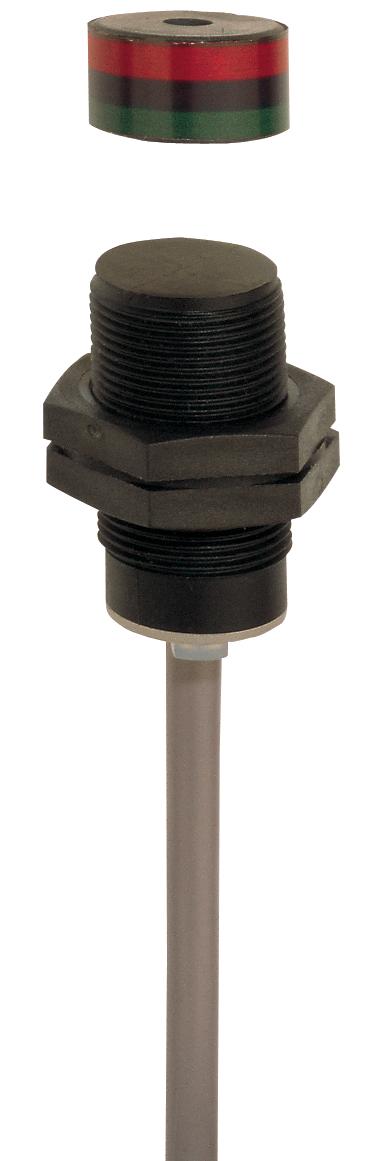

SCHMERSAL MAGNETIC SAFETY SENSOR 101130683
